| Ελάχιστη Ποσότητα Παραγγελίας: | 1 Τεμάχιο |
| τιμή: | Negotiable price |
| Τυπική Συσκευασία: | Ξύλινη συσκευασία |
| Περίοδος παράδοσης: | 3-7 ημέρες |
| Μέθοδος πληρωμής: | T/T, PayPal και Trade Assurance |
| Ικανότητα εφοδιασμού: | 1000 τεμάχια |
Our main products are Excavator Hydraulic spare parts, including Hydraulic main pumps, Swing Motors, Travel Motors, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulators, Relief Valves, Fan motors and other hydraulic items with genuine and aftermarket quality.
Our products enjoy a high reputation and have been exported to more than 125 countries and regions, including the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania under our own brand "Belparts", which is widely acclaimed by customers worldwide.
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| 13-16A | LBB0122 | Ring, back-up | 2 |
| 53 | LJP0027 | Shaft, front | 1 |
| 34-3 | N.S.P. | None serviced part | 1 |
| 13-7 | LZP0109 | Cover, pilot, pump | 1 |
| 24 | LBB0253 | Ring, back-up | 2 |
| 56 | LMP0161 | Spacer | 2 |
| 31 | 6004/3203 | Capscrew | 4 |
| A | KNJ1025 | Pump, hydraulic | 1 |
| 43 | LZP0110 | Body, port | 1 |
| 46 | LMP0180 | Collar | 2 |
| 47 | LBQ1251 | O Ring | 2 |
| 62 | LZP0102 | Casing, oil, seal | 1 |
| 34 | LNP0089 | Cylinder, assembly | 1 |
| 35 | LZP0104 | Casing | 1 |
| 58 | 370A0350Z | Ring, snap | 2 |
| 36-2 | N.S.P. | None serviced part | 9 |
| 13-11 | 6004/3311 | Capscrew | 4 |
| 13-6 | LBQ0701 | O Ring | 1 |
| 15 | LZP0108 | Cover, regulater | 2 |
| 50 | LBQ0182 | O Ring | 3 |
| 18 | LUP0069 | Nut | 4 |
| 51 | KRP0401 | Plug | 3 |
| 7 | 6004/3308 | Capscrew | 8 |
| 64 | LZP0112 | Flange, mounting | 1 |
| 13-12 | LDP0033 | Shaft, gear | 1 |
| 5 | LBB0152 | Ring, back-up | 2 |
| 52-2 | N.S.P. | None serviced part | 1 |
| 10 | LLP0079 | Plug | 2 |
| 14 | 1391/3409Z | Capscrew, M10 x 35mm | 4 |
| 26 | LUP0068 | Capscrew | 8 |
| 6 | LBQ0152 | O Ring | 2 |
| 34-2 | N.S.P. | None serviced part | 1 |
| 20 | LBQ0082 | O Ring | 1 |
| 13-10 | LKP0024 | Bush | 1 |
| 13-9C | N.S.P. | None serviced part | 1 |
| 33 | LZP0103 | Casing | 1 |
| 42 | LTP0035 | Bearing, inner race | 2 |
| 27 | LPP0049 | Piston, regulater | 2 |
| 13-3 | LLP0082 | Plug | 1 |
| 39 | LMP0164 | Pin | 4 |
| 63 | 6004/3709 | Capscrew | 4 |
| 2 | LTP0032 | Bearing, roller | 4 |
| 52-1 | N.S.P. | None serviced part | 1 |
| 28 | LUP0087 | Screw | 8 |
| 11 | N.S.P. | None serviced part | 10 |
| 9 | LBQ0112 | O Ring | 2 |
| 36 | N.S.P. | None serviced part | 1 |
| 22 | LMP0156 | Pin | 2 |
| 8 | LBQ0253 | O Ring | 4 |
| 29 | LDP0036 | Plate, gear pivot | 4 |
| 30 | LKP0026 | Bush, slide | 2 |
| 4 | LSP0082 | Seat, spring | 2 |
| 13-2 | LBQ0082 | O Ring | 1 |
| 55 | LTP0034 | Bearing, roller | 2 |
| 38 | 6004/3405 | Capscrew | 4 |
| 13-5 | LMP0156 | Pin | 2 |
| 12 | KXJ0106 | Capscrew | 8 |
| 13 | LNP0099 | Pump, pilot | 1 |
| 13-9 | LNP0136 | Casing, pilot, pump | 1 |
| 32 | LMP0162 | Stay | 2 |
| 17 | LUP0072 | Screw | 4 |
| 34-1 | N.S.P. | None serviced part | 9 |
| 44 | LCP0027 | Coupling | 1 |
| 48 | LSP0083 | Seat, spring | 2 |
| 36-1 | N.S.P. | None serviced part | 1 |
| 40 | LJP0028 | Shaft, rear | 1 |
| 13-17 | N.S.P. | None serviced part | 1 |
| 13-9A | N.S.P. | None serviced part | 1 |
| 1 | LDP0035 | Guide, gear assembly | 4 |
| 13-16B | LBQ0120 | O Ring | 1 |
| 13-14 | LKP0025 | Bush | 2 |
| 54 | LBU0005 | O Ring | 2 |
| 25 | LMP0160 | Stop | 2 |
| 13-9B | LDP0031 | Gear, drive | 1 |
| 57 | LBQ0701 | O Ring | 1 |
| 45 | LTP0033 | Bearing, needle | 2 |
| 13-16C | LBQ0182 | O Ring | 1 |
| 19 | LZP0111 | Plate, swash, pump | 2 |
| 13-18 | LBQ0092 | O Ring | 3 |
| 61 | LAP0019 | Seal, oil | 1 |
| 21 | LLP0082 | Plug | 1 |
| 16 | 6004/3305 | Capscrew | 8 |
| 52 | LNP0088 | Retainer, holder, assembly | 1 |
| 13-16 | LNP0086 | Valve, relief | 1 |
| 60 | LMP0165 | Ring, snap | 1 |
| 41 | LBQ0092 | O Ring | 7 |
| 23 | LMP0157 | Pin | 10 |
| 13-8 | LBP0050 | O Ring | 1 |
| 59 | LZP0105 | Flange | 1 |
| 14 | 6004/3409 | Capscrew | 4 |
| 36 | LNP0090 | Cylinder, assembly | 1 |
| 37 | LZP0121 | Cover, rear | 1 |
| 49 | LSP0081 | Kit-spring | 2 |
| 3 | LZP0120 | Cap | 2 |

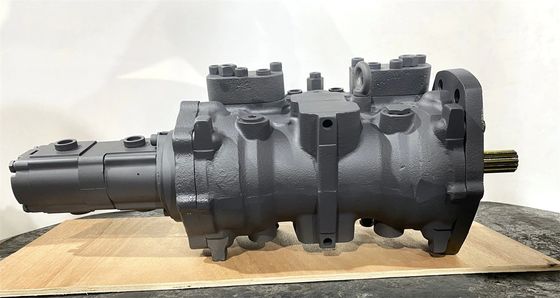

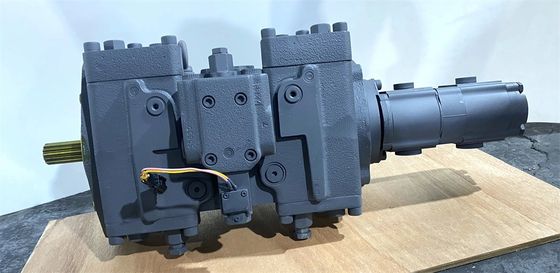

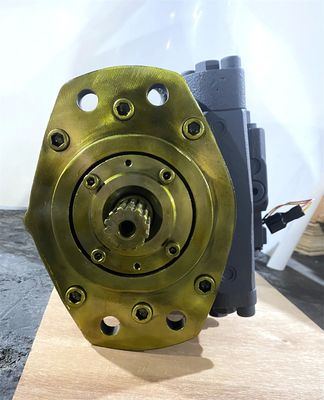

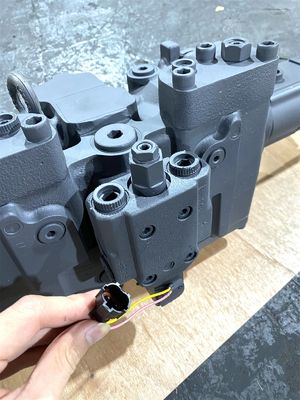

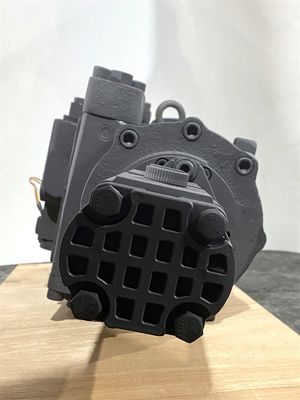

Price includes: Hydraulic excavator pump (complete unit)
Warranty: 12 months
We also supply:
Shipping: Available to all countries (ask for shipping cost before transaction)
For quotations or more information:
Email: belparts02@gmail.com
WhatsApp: +86 189 2896 5241
Please feel free to contact us anytime.
